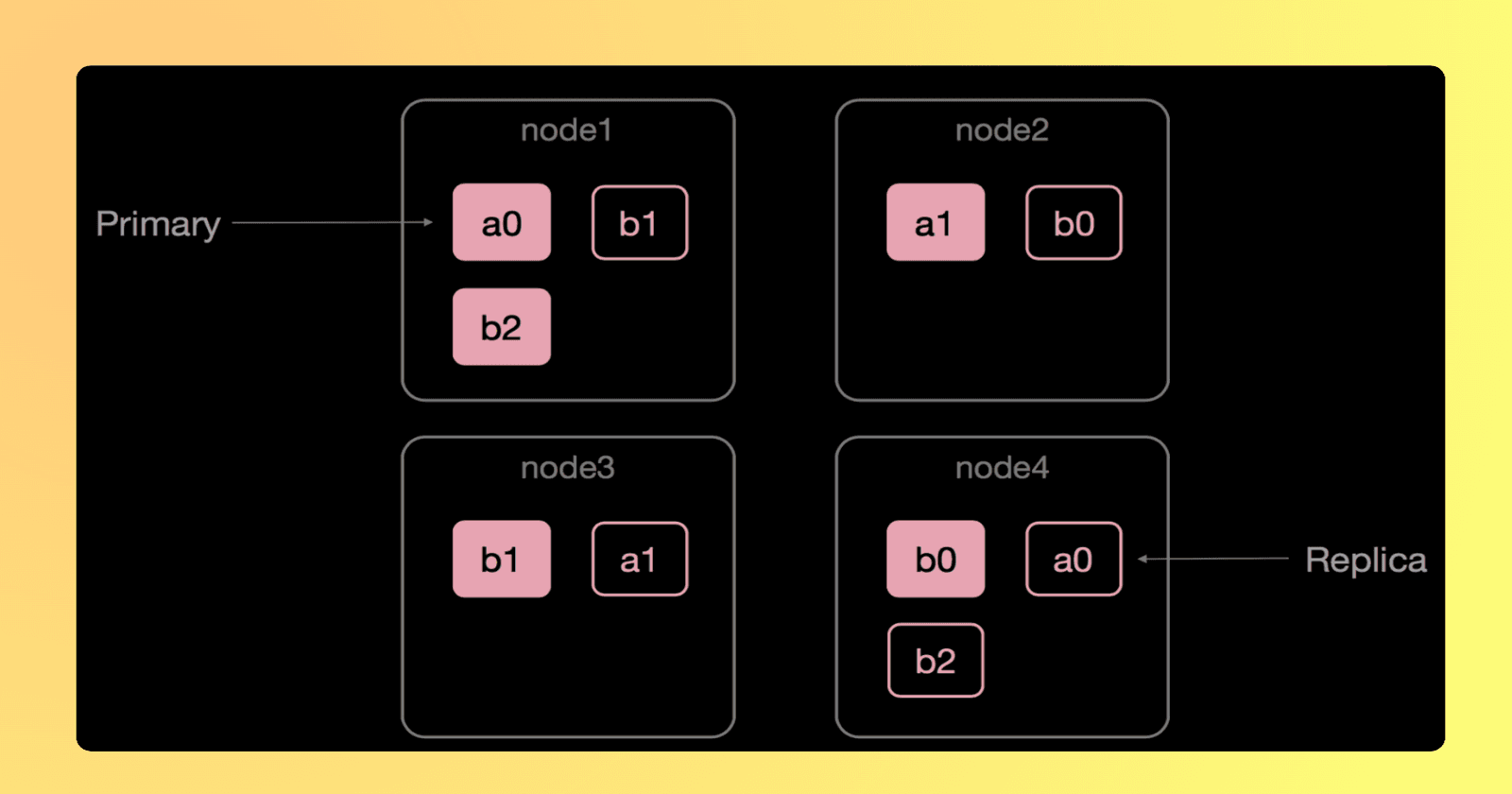

Balancing Performance and Scalability
with Elasticsearch Shards and Replicas

Disclaimer

The entire article is based on a Stack Overflow response about shards and replicas, and all credit goes to Javanna for providing an outstanding explanation.

The explanation is so simple that even if you have no idea what the hell shard and replica are, you should be able to grasp high-level notions within a few minutes.

It is simply an attempt to draw attention to folks who may want to recognize the distinction between Shards and Replicas without using jargon.

How is data dispersed throughout the shard?

When you download elasticsearch and start it up, you create an elasticsearch node that tries to join an existing cluster if available or creates a new one. Let's say you created your own new cluster with a single node, the one that you just started up. We have no data, therefore we need to create an index.

When you create an index (an index is automatically created when you index the first document as well) you can define how many shards it will be composed of. If you don't specify a number it will have the default number of shards: 5 primaries. What does it mean?

It means that elasticsearch will create 5 primary shards that will contain your data:

 ____    ____    ____    ____    ____
| 1  |  | 2  |  | 3  |  | 4  |  | 5  |
|____|  |____|  |____|  |____|  |____|

Every time you index a document, elasticsearch will decide which primary shard is supposed to hold that document and will index it there. Primary shards are not a copy of the data, they are the data! Having multiple shards does help take advantage of parallel processing on a single machine, but the whole point is that if we start another elasticsearch instance on the same cluster, the shards will be distributed in an even way over the cluster.

Node 1 will then hold for example only three shards:

 ____    ____    ____
| 1  |  | 2  |  | 3  |
|____|  |____|  |____|

Since the remaining two shards have been moved to the newly started node:

 ____    ____
| 4  |  | 5  |
|____|  |____|

Why does this happen? Because elasticsearch is a distributed search engine and this way you can make use of multiple nodes/machines to manage big amounts of data.

Every elasticsearch index is composed of at least one primary shard since that's where the data is stored. Every shard comes at a cost, though, therefore if you have a single node and no foreseeable growth, just stick with a single primary shard.

Why do we require a replica?

Another type of shard is a replica. The default is 1, meaning that every primary shard will be copied to another shard that will contain the same data. Replicas are used to increase search performance and for fail-over. A replica shard is never going to be allocated on the same node where the related primary is (it would pretty much be like putting a backup on the same disk as the original data).

Back to our example, with 1 replica we'll have the whole index on each node, since 2 replica shards will be allocated on the first node and they will contain exactly the same data as the primary shards on the second node:

 ____    ____    ____    ____    ____
| 1  |  | 2  |  | 3  |  | 4R |  | 5R |
|____|  |____|  |____|  |____|  |____|

Same for the second node, which will contain a copy of the primary shards on the first node:

 ____    ____    ____    ____    ____
| 1R |  | 2R |  | 3R |  | 4  |  | 5  |
|____|  |____|  |____|  |____|  |____|

With a setup like this, if a node goes down, you still have the whole index. The replica shards will automatically become primaries and the cluster will work properly despite the node failure, as follows:

 ____    ____    ____    ____    ____
| 1  |  | 2  |  | 3  |  | 4  |  | 5  |
|____|  |____|  |____|  |____|  |____|

Since you have "number_of_replicas":1, the replicas cannot be assigned anymore as they are never allocated on the same node where their primary is. That's why you'll have 5 unassigned shards, the replicas, and the cluster status will be YELLOW instead of GREEN. No data loss, but it could be better as some shards cannot be assigned.

As soon as the node that had left is backed up, it'll join the cluster again and the replicas will be assigned again. The existing shard on the second node can be loaded but they need to be synchronized with the other shards, as write operations most likely happened while the node was down. At the end of this operation, the cluster status will become GREEN.
